14 Core Flexible Shielded Signal Cable FEP Insulation for High-Frequency Transmission

Name: 14 Core Flexible Shielded Signal Cable FEP Insulation for HighFrequency Transmission
Brand: Bing Wire & Cable
Price: 0.01 USD

Quality 14 Core Flexible Shielded Signal Cable FEP Insulation for High-Frequency Transmission for sale

Model Number : 14 Cores singal shield Cable

Brand Name : Bing Wire & Cable

Place of Origin : Shanghai, China

MOQ : 1000 meters

Price : $0.01-1.29 / m

Certification : CE/RoHS/ISO

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000m 7 work days

Delivery Time : 10-15 work days

Conductor Material : Tinned Copper

Jacket : PVC

Insulation Material : FEP

Working Temperature : -55°C ~180°C

Application : Power Distribution, Industrial, Overhead, Marine, Telecommunication, Other

Size : Custom

Contact Now

Product Description

This 14-core flexible shielded signal cable is a high-temperature, ultra-fine wiring solution designed for stable signal transmission in industrial equipment, instrumentation, PCB assemblies, ovens, and harsh-environment installations. Featuring silver-plated copper conductors, FEP insulation, 90% tinned copper shielding, and a blue PVC jacket, it combines excellent flexibility, anti-interference performance, and wide temperature resistance for long-term reliability.

Core Advantages

14-core structured with color-coded cores for easy identification
Tin-plated copper conductors for low resistance and high conductivity
FEP insulation supports a wide temperature range from -55℃ to +180℃
90% coverage tinned copper shielding for strong anti-interference
Flexible construction ideal for equipment internal wiring and tight routing
Blue PVC outer jacket for abrasion resistance and protection
Ultra-fine outer diameter below 4.57 mm for space-saving layout

Application Scenarios

Electronic equipment internal wiring
PCB board connection and assembly
Ovens, drying chambers and high-temperature equipment
Motor lead wires and electrical engineering
Instruments, meters and control systems
Aviation equipment and device installation

Why to Choose Our Multicore signal shield cable ?

This 14-core multi-core cable is engineered to deliver stable and clear signal transmission in demanding environments. Its tin-plated copper conductors and FEP insulation ensure reliable performance even at high temperatures up to 180℃, while the 90% tinned copper shielding effectively blocks electromagnetic interference. The compact outer diameter and flexible structure allow easy installation in confined spaces, and the color-coded cores simplify routing and maintenance. With durable PVC jacket and high-quality materials, this cable provides long service life and consistent performance for industrial, automotive, and instrumentation applications.

Specification

Construction Characteristic
Item			Property
14cores shield wire	Conductor		Tin plated copper
	Stranding	mm	7/0.10
	Insulation	--	FEP
	Color	---	Yellow/green/blue/white/black/brown/red/ orange/yellow/green/blue/purple/gray/white
	Temperature rating	(℃)	-55～180
Binder tape	---	---	Non-woven fabric
Shield	Shield coverage	%	90
	Shield material		Tinned copper wire
Jacket	Material	---	PVC
	Diameter	mm	<4.57
	Color		Blue

Product Detail

14 Core Flexible Shielded Signal Cable FEP Insulation for High-Frequency Transmission

FAQ

1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.

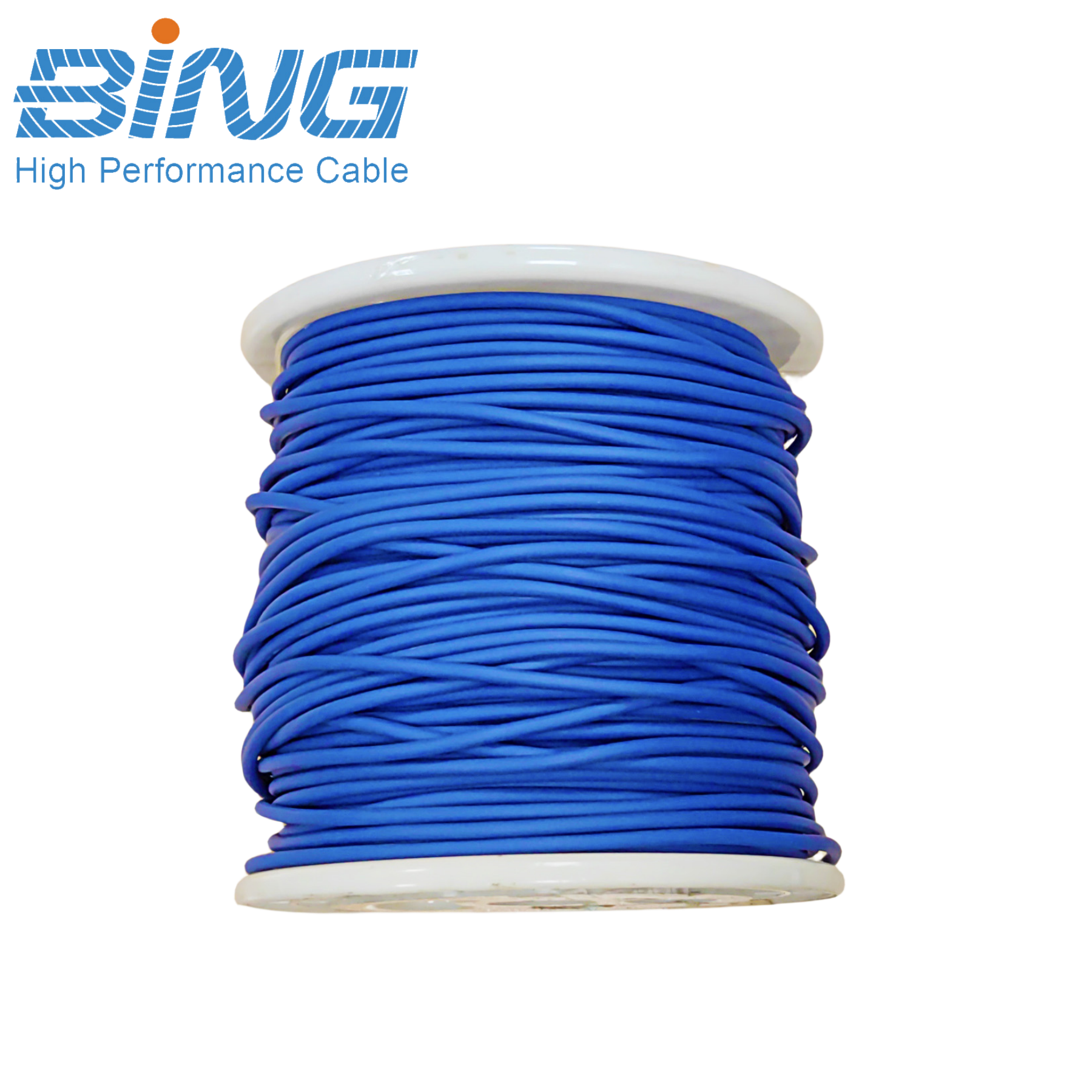

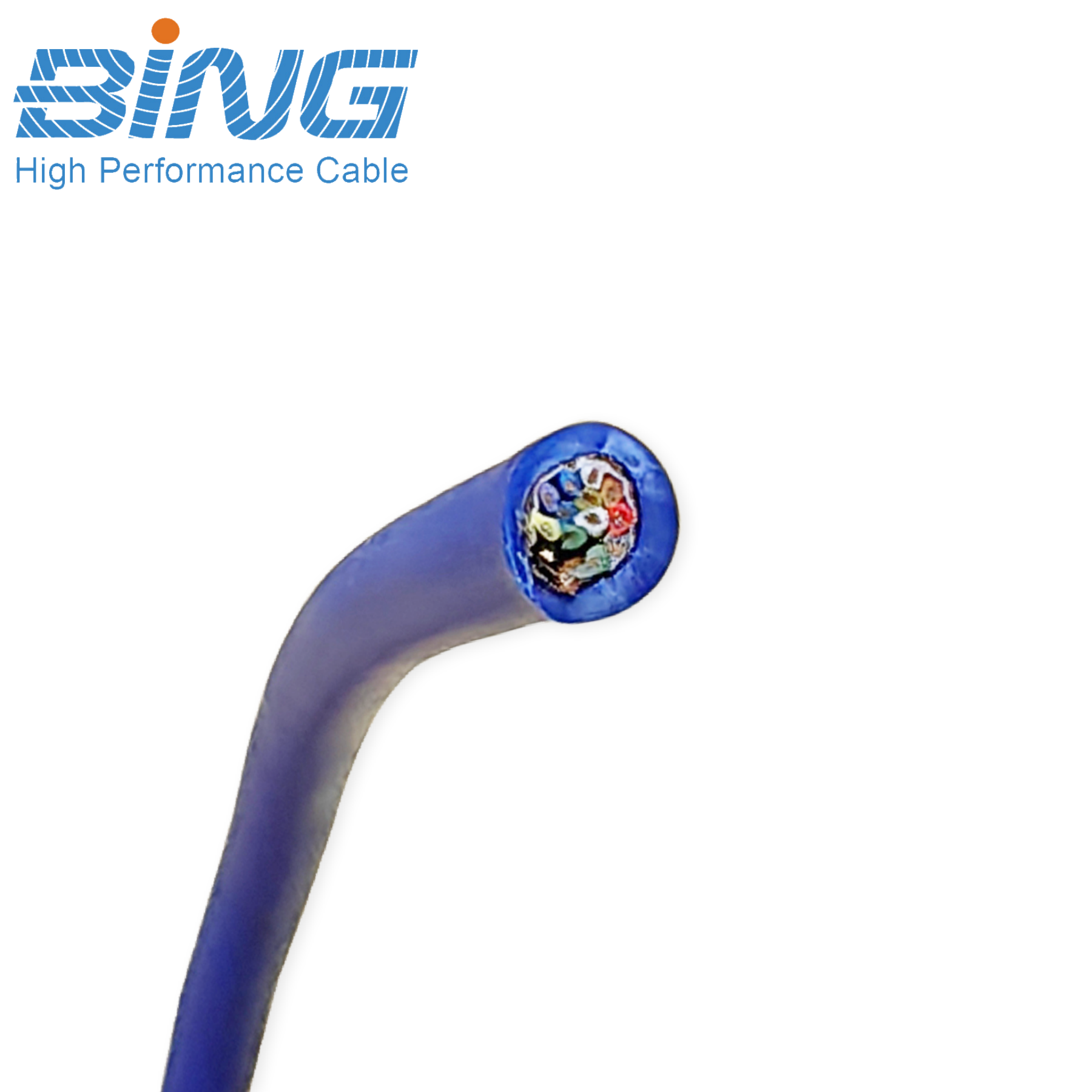

14 Core Flexible Shielded Signal Cable FEP Insulation for High-Frequency Transmission Images
