Multi Core Flexible Shielded Signal Cable Optimized for Automation and Process Control Systems

Name: Multi Core Flexible Shielded Signal Cable Optimized for Automation and Process Control Systems
Brand: Bing Wire & Cable
Price: 0.01 USD

Quality Multi Core Flexible Shielded Signal Cable Optimized for Automation and Process Control Systems for sale

Brand Name : Bing Wire & Cable

Model Number : 21-core signal shield Cable

Certification : CE/RoHS/ISO

Place of Origin : Shanghai, China

MOQ : 1000 meters

Price : $0.01-1.29 /m

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000m 7 work days

Delivery Time : 10-15 work days

Conductor Material : Tinned Copper

Insulation : FEP

Tape : Polymide tape

Jacket : PVC

Rated Voltage : 250 V

Working Temperature : -55°C ~ 180°C

Application : Power Distribution, Industrial, Overhead, Marine, Telecommunication, Other

Size : Custom

Contact Now

Product Description

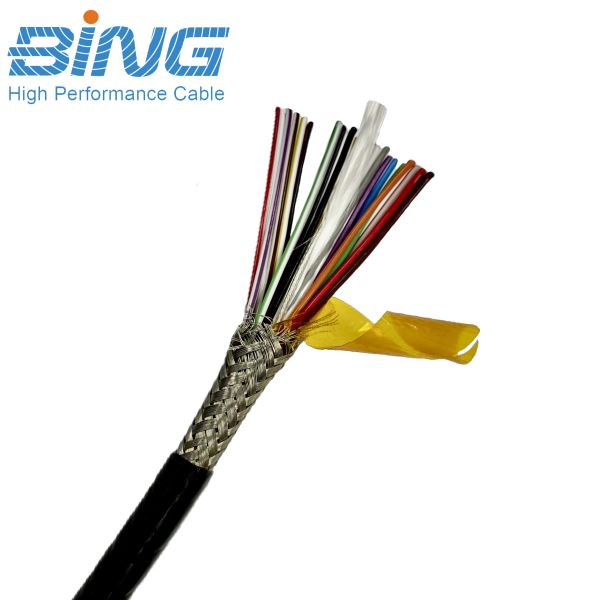

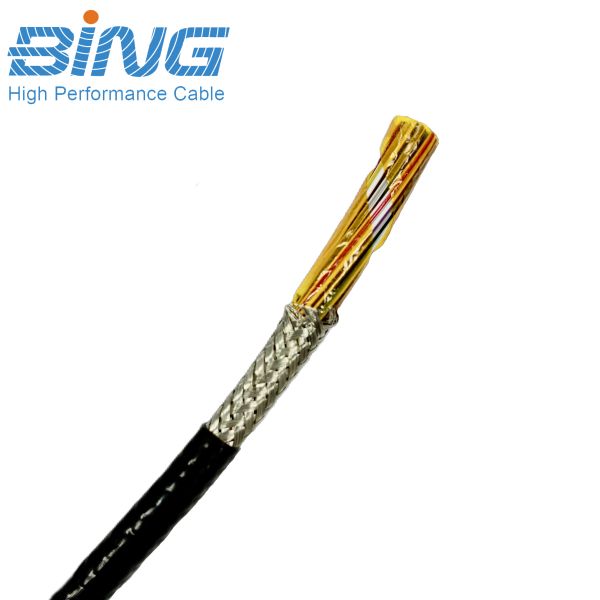

KT2419 STK21T is a high-performance custom 21‑core shielded cable designed for stable signal and power transmission in high‑temperature, high‑reliability equipment. Built with tinned copper conductors, FEP insulation and jacket, braided shielding, and fiberglass fillers, it provides excellent anti‑interference, heat resistance, and mechanical durability for industrial, instrumentation, and harsh‑environment applications.

Core Advantages

21‑core multi‑core structure for high‑density wiring
Stranded tinned copper conductors for good conductivity and flexibility
FEP insulation with multi‑color and two‑tone identification for easy installation
Polyimide tape binder for stable structure and high heat resistance
Fiberglass fillers for roundness and improved flexibility
Braided tinned copper shield for strong anti‑interference performance
Black FEP jacket for high temperature resistance and protection
Wide operating temperature range: -55℃ to +180℃
High voltage withstand: 2000V RMS test voltage

Application Scenarios

Industrial control and automation equipment
Precision instruments and testing devices
High‑temperature equipment such as ovens and drying systems
Medical and aviation internal wiring
Multi‑core signal transmission with anti‑interference requirements
Custom equipment and device internal connection

Why to Choose Our Multicore signal shield cable ?

This 21‑core custom cable is engineered to deliver consistent performance in demanding working environments. The full FEP insulation and jacket system provides excellent thermal stability and long service life at high temperatures up to 180℃. The braided tinned copper shielding effectively blocks electromagnetic interference, ensuring clear and stable signal transmission. With 21 color‑coded cores, fiberglass filling, and a compact outer diameter, it supports high‑density layout and easy installation. High mechanical strength, reliable voltage resistance, and professional shielding design make it an ideal solution for customized high‑performance wiring in industrial, medical, instrumentation, and high‑temperature equipment.

Specification

	Material	Diameter(mm)
1 ．Conductor	Stranded tin plated copper	19/0.12
2.Jacket	FEP(Black ,Brown ,Red ,Orange ,Yellow ,Green ,Blue,Violet ,Grey ,White ,Transparent ,Red/Black ,Grey/White,Violet/White ,Black/White ,Brown/White ,Blue/White,Red/White ,Green/White ,Yellow/White ,Orange/White)	0.96±0.03 ①
3．Binder	Polyimide tape (longitudinally applied)	——
4 ．Shield	Braided tin plated copper	5.80
5．Jacket	FEP(Black)	6.25±0.25 ②
6．Filler	Fiberglass	——
GENERAL CHARACTERISTICS
Operating Voltage(V)	250
Test Voltage rating(VMS)	2000 ④
Conductor resistance(ohm/100m)	9.04 (straight insulated wire) 9.31 (stranded wire of cable) ③
Operating Temperature Rating (℃)	-55～+180

Product Detail

Multi Core Flexible Shielded Signal Cable Optimized for Automation and Process Control Systems

FAQ

1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.

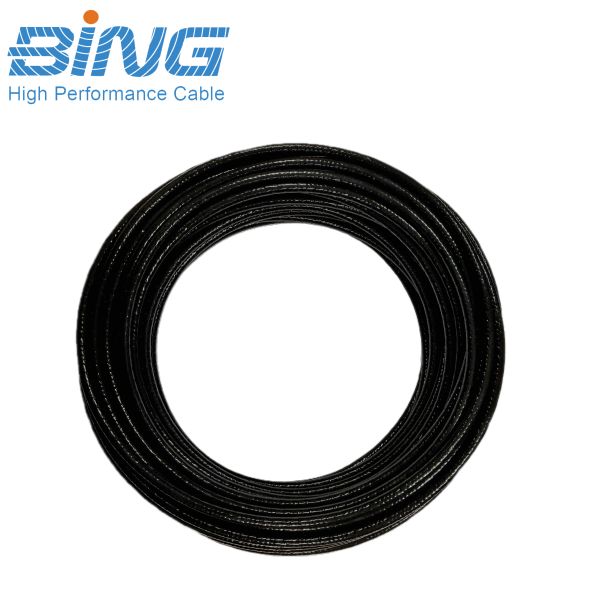

Multi Core Flexible Shielded Signal Cable Optimized for Automation and Process Control Systems Images
