RF0.81 Miniature Coax Cables 50 Ohm Featuring Robust Construction and Flexibility in Aerospace and Defense Electronic Systems

Name: RF081 Miniature Coax Cables 50 Ohm Featuring Robust Construction and Flexibility in Aerospace and Defense Electronic Systems
Brand: Bing Wire & Cable
Price: 3.22 USD

Quality RF0.81 Miniature Coax Cables 50 Ohm Featuring Robust Construction and Flexibility in Aerospace and Defense Electronic Systems for sale

Brand Name : Bing Wire & Cable

Model Number : RF0.81

Certification : CE/RoHS/ISO

Place of Origin : Shanghai, China

MOQ : 1000 meters

Price : $3.22-40.68 / meter

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 2000m 7 work days

Delivery Time : 10-15 work days

Type : Flexible minature coaxial cable

Inner Conductor : Sliver Plated copper

Insulation : FEP/PFA

Shielding : Sliver Plated copper

Jacket : FEP/PFA

Impedance : 50 Ohm

Voltage Rated : 1000V

Temperature Range : -55°C ~ +200°C

Application : heating

Color : Customized Color

Packing : As requirement

Contact Now

Product Description

Our RF 0.81 miniature coaxial cable is specially designed for ultra-compact device designs, combining extreme slimness with reliable performance—ideal for miniaturized electronics, precision sensors, and space-constrained applications. It features a silver-plated copper conductor with FEP insulation and jacket. As a professional RF 0.81 cable manufacturer, we provide cost-effective, high-quality solutions that meet global standards, tailored for devices where every millimeter of space matters.

Key Features

Ultra-Mini Size (0.81mm OD): 39% thinner than the RF 1.32, perfect for ultra-compact devices like smart watches, micro sensors, and miniaturized medical probes—ideal for high-density, space-critical wiring.
Precision Low-Loss Transmission: Equipped with ultra-thin FEP insulation and fine-stranded silver-plated copper conductors, minimizing signal attenuation for stable transmission.
Lightweight & Miniature Shielding: High-density fine copper braid shielding (90%-92%) effectively blocks EMI while keeping the cable slim, suitable for portable, lightweight devices.
Superior Flexibility: TheRF0.81 miniature coax cable features a stranded silver-plated copper center conductor and a flexible FEP jacket, allowing for a tight bend radius (as low as 4mm). This makes routing around components and through hinges in devices like laptops and routers simple and reliable.
Low Signal Loss (Attenuation): Despite its small size, it offers optimized attenuation for its class. For example, typical attenuation at 2.4 GHz is around 3.0 dB/m, and at 5.8 GHz, it is approximately 5.1 dB/m, ensuring signal integrity over short internal distances.
Wide Temperature Adaptability: Operates reliably from -40°C to +150°C (optimized for consumer electronics and portable devices, different from RF 1.32’s ultra-wide industrial temperature range).

Applications

Micro Sensors: Miniature pressure/temperature sensors, tiny IoT modules, and micro-probes for medical and industrial use.
Precision Medical Devices: Miniature endoscopes, portable blood glucose monitors, and wearable medical patches.
Ultra-Small Consumer Electronics: Mini portable gaming devices, micro GPS trackers, and compact Bluetooth modules.
Specialized Equipment: Miniature drones (micro-drones), tiny industrial cameras, and precision test instruments.

Why Choose Our RF0.81 Miniature coaxial cable?

If your project requires an ultra-slim, lightweight coaxial cable for space-critical devices, the RF 0.81miniature coaxial cable is the perfect alternative to the RF 1.32miniature coax. As a professional RF cable manufacturer, we produce the RF 0.81 with stricter precision control (to ensure slimness without sacrificing performance), factory-direct pricing, and flexible MOQ (minimum order quantity lower than RF 1.32, ideal for small-batch samples and prototype projects). We also offer dedicated technical support to help you integrate the RF 0.81 miniature coax into your ultra-mini device designs.

Specifications

Construction Specification
Inner Conductor	Material	Silver Plated Copper Wire
	Construction(No./mm)	7/0.05
	Nominal Diameter(mm)	0.15
Insulation	Material	FEP
	Nominal Insulation Thickness(mm)	0.13
	Min. Insulation Thickness(mm)	0.11
	Nominal Diameter(mm)	0.40
	Color	True Color
Outer Conductor	Material	Silver Plated Copper Wire/Tinned Copper wire
	Construction	0.05mm Wire Single Braided
	Shielding Density(%)	95
Jacket	Material	FEP
	Nominal Thickness(mm)	0.11
	Min. Thickness(mm)	0.09
	Nominal Outer Diameter(mm)	0.81
	Color	Red/Yellow/Blue/White/Black/Grey/Dual Color..ect
Electrical Characteristics
Impedance	50ohm
Insulation Voltage	1000V
Mechanical Performance Parameters
Operating Temp.(℃)	-55~+180℃
RoHS Certificate	Compliant

Product Detail

RF0.81 Miniature Coax Cables 50 Ohm Featuring Robust Construction and Flexibility in Aerospace and Defense Electronic Systems

FAQ

1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.

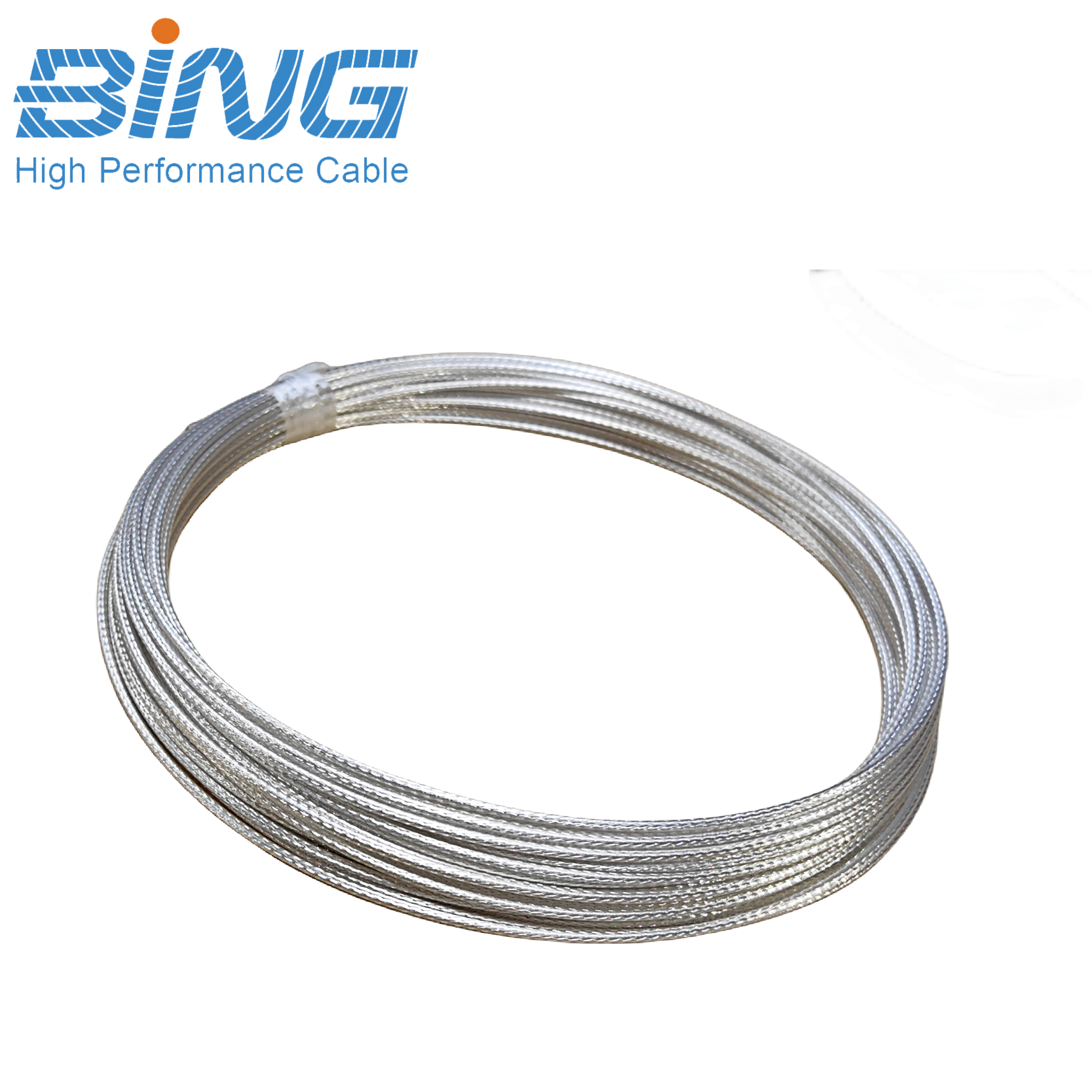

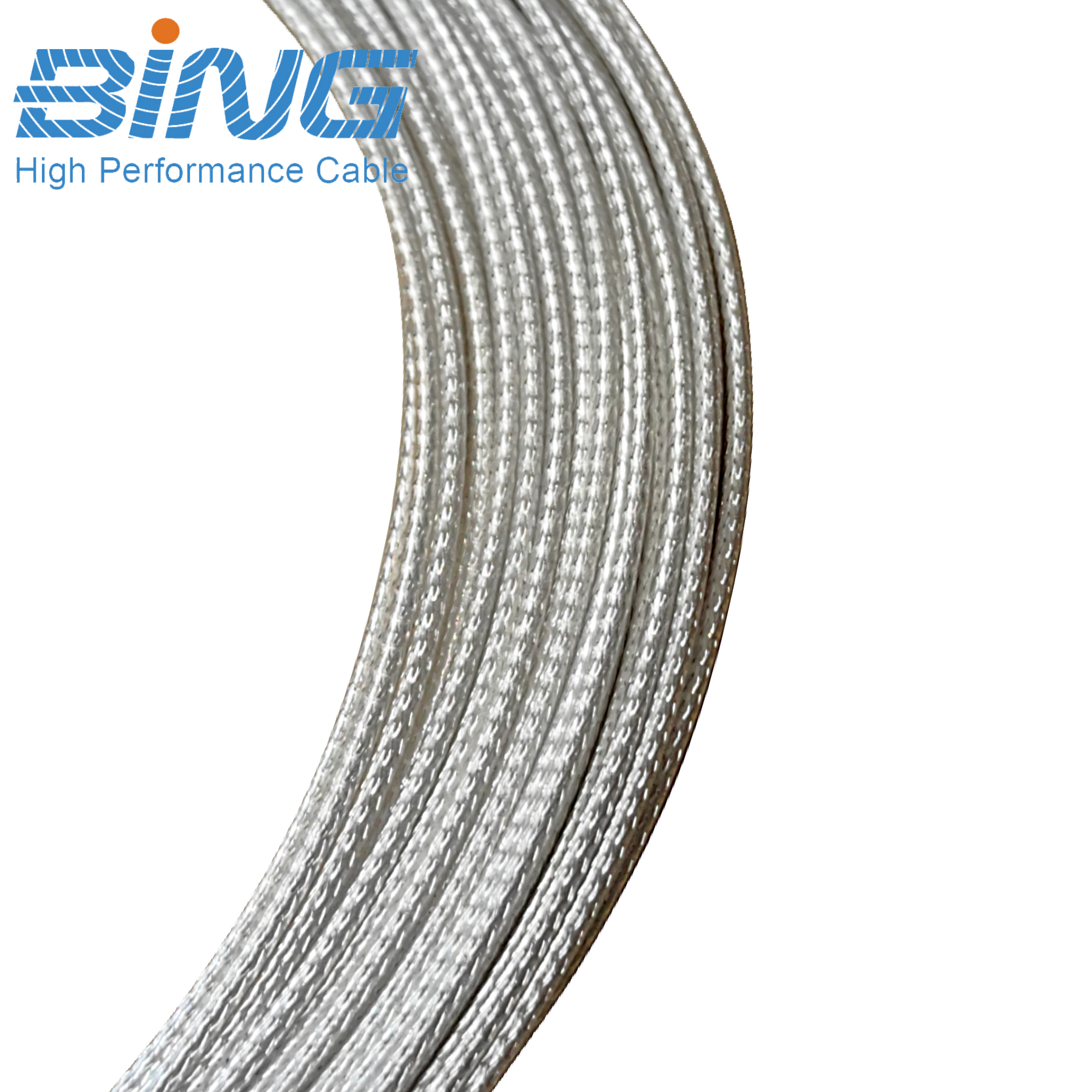

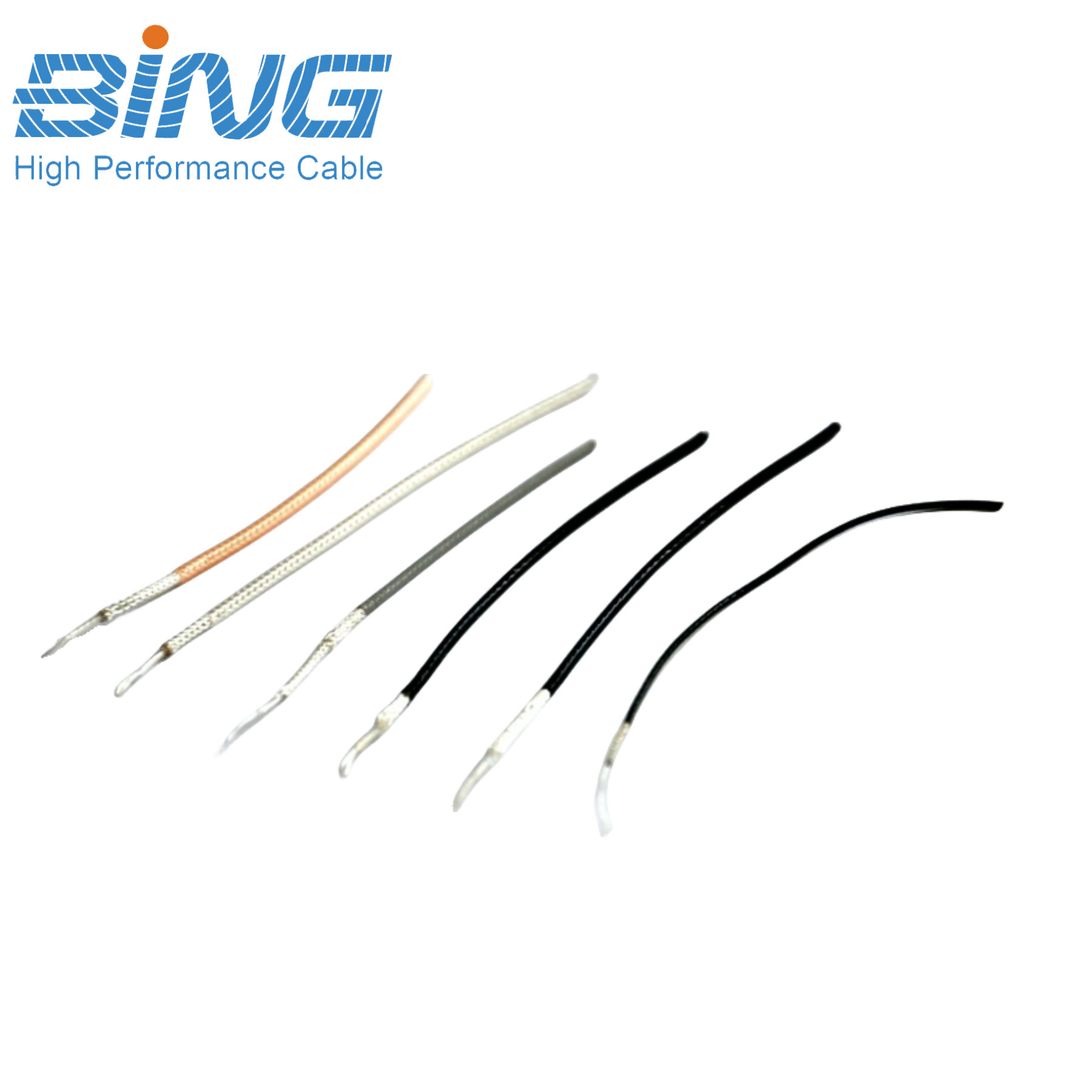

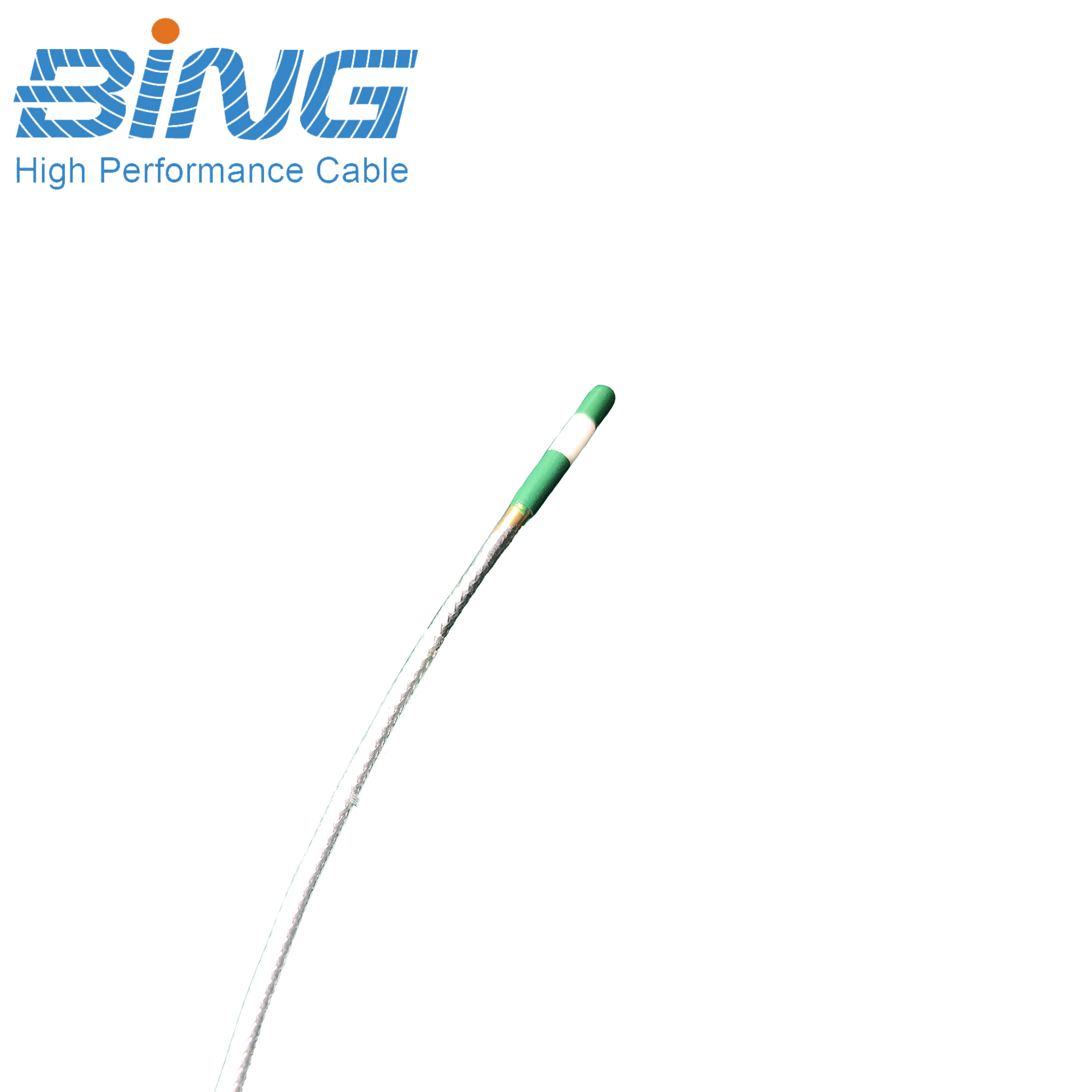

RF0.81 Miniature Coax Cables 50 Ohm Featuring Robust Construction and Flexibility in Aerospace and Defense Electronic Systems Images
