250V HET-SPC Polyimide Taped Wire Silver Plated Copper Lightweight Cable for Communication

Name: 250V HETSPC Polyimide Taped Wire Silver Plated Copper Lightweight Cable for Communication
Brand: Bing Wire & Cable
Price: 6.13 USD

Quality 250V HET-SPC Polyimide Taped Wire Silver Plated Copper Lightweight Cable for Communication for sale

Model Number : HET-SPC

Place of Origin : Shanghai, China

Brand Name : Bing Wire & Cable

MOQ : 1000 meters

Price : $6.13-19.98 / meter

Certification : CE/RoHS

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 2000M 7work days

Delivery Time : 10-15 work days

Conductor : electrolytic silver plated annealed copper

Insulation Material : Wrapped and sealed FP/ Polyimide composited tape

Rated Voltage : 250V

Rated Temperature : -90°C~+200°C

Application : Mili tary Aircraft Wiring/Extreme Engine Bay/Helicopter Avionics

Color : Customized Color

Packing : As requirement

Contact Now

Product Description

Our HET-SPC polyimide taped wire is a high-performance electrical conductor engineered for the most demanding aerospace and mili tary applications. Designed to meet the strictest requirements for commercial and mili tary aircraft, this 250V-rated wire features a fluororesin-coated polyimide taped insulation—delivering exceptional temperature resistance, lightweight construction, and unrivaled durability in harsh environments.

Conductor: electrolytic silver plated annealed copper
Insulation Detail: Wrapped and sealed FP/ Polyimide composited tape
Operating Temperature: -90~+200℃.
Rated Voltage: AC 250V.
Insulation Thickness: 0.185 mm.
Standard Colors: Black, brown, red, orange, yellow, green, blue, purple, gray, white (custom colors available).

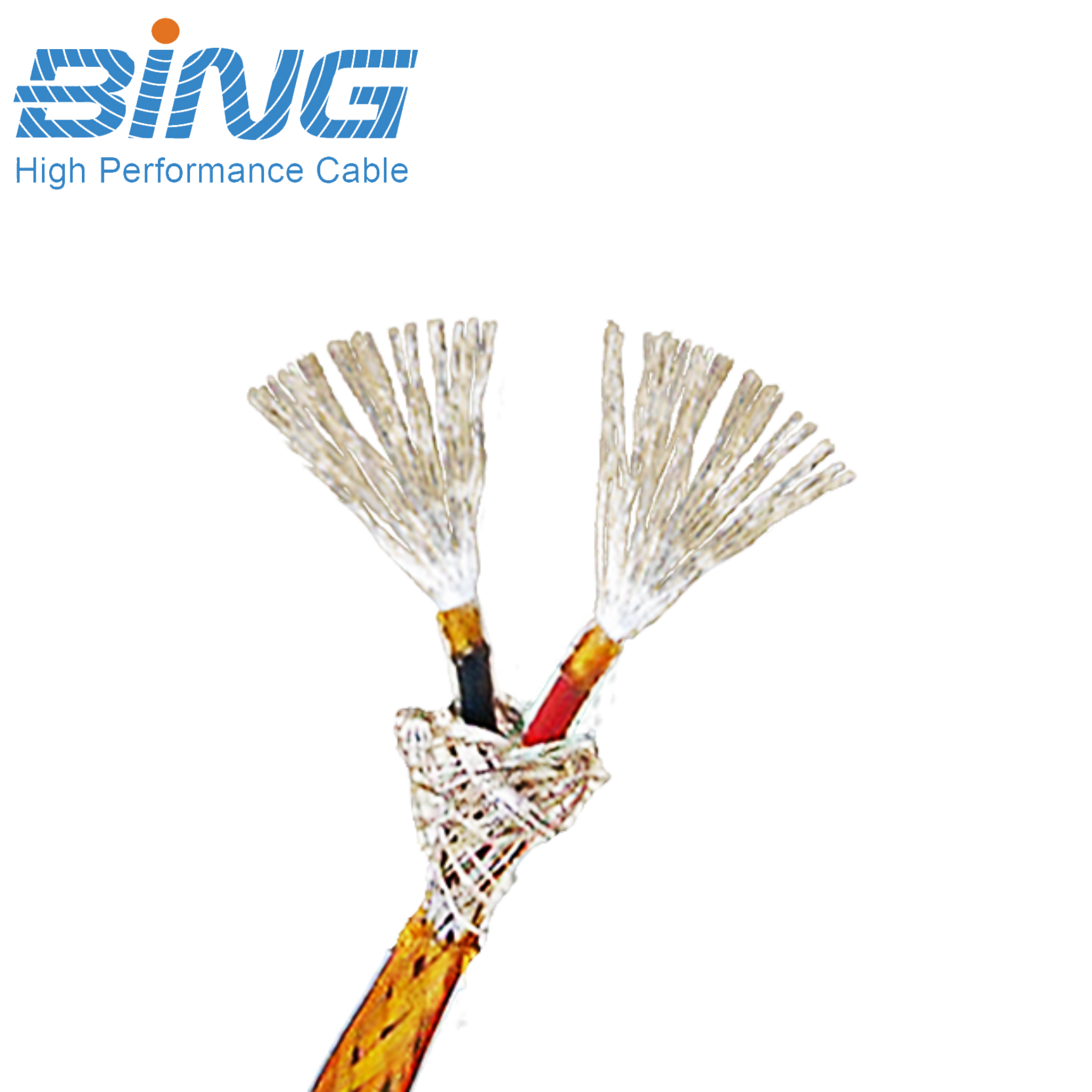

Multi-core Cables: Twisted pair, three-core stranded, four-core stranded, etc. (with/without sheath, with/without shielding optional).

Key Features

Lightweight design: Thin-wall construction reduces overall aircraft weight without compromising insulation integrity.
Wide Temperature Range: Reliable operation from -90°C to +200°C
Flame Retardant: Low flame propagation properties meeting stringent aerospace requirements
Chemical Resistance: Excellent resistance to aviation fuels, hydraulic fluids, and lubricants
Laser Markable Surface: Permanent identification for traceability and maintenance
High-Conductivity Silver-Plated Copper: Available in both annealed electrolytic copper and high-strength copper alloy variants
Ultra-Thin Wall Design: 0.185mm polyimide taped insulation thickness for weight reduction without compromising dielectric strength
Compliance-ready: Meets the most rigorous aerospace standards for low flame spread and smoke density

Applications

Medical Devices: Specialized equipment requiring biocompatible materials
Commercial & Mili tary Aircraft: Avionics, instrumentation, navigation, and aerospace communication systems.
Engine Compartments: Ignition, control, and monitoring systems in high-temperature, high-vibration environments.
Helicopters: Power and signal transmission systems.
UAVs & Missiles: Lightweight, high-reliability internal wiring for launch and flight operations.

Why Choose Our Polymide Taped Wire?

Our HET-SPC Polyimide Taped wire is designed for the harshest environments and extreme conditions. This silver plated copper wire may be used in commercial or mili tary aircraft where wire applications must adhere to strict restrictions and specifications. As a professional Electrolytic silver-plated copper cable, our high-performance polyimide taped wire meets the strictest requirements for small dimensions, high-temperature resistance, low weight, and flame retardant, making it the top choice for Aerospace communication cable and mission-critical aerospace wiring.

Technical Specifications

PART NUMBER	AWG	CONSTRUCTION (mm)	CONDUCTOR NOMINAL (mm)	NOMINAL AREA (mm²)	NOMINAL RESISTANCE (Ω / 100m)	INSULATED WIRE
PART NUMBER	AWG	CONSTRUCTION (mm)	CONDUCTOR NOMINAL (mm)	NOMINAL AREA (mm²)	NOMINAL RESISTANCE (Ω / 100m)	NOMINAL (mm)	APPROX. WEIGHT (g/m)
HET 3001	30	1/ 0.254	0.254	0.051	35	0.62	0.88
HET 3007	30	7/ 0.102	0.303	0.057	34	0.67	1.00
HET 2801	28	1/ 0.320	0.320	0.081	21	0.69	1.21
HET 2807	28	7/ 0.127	0.381	0.088	20	0.75	1.40
HET 2601	26	1/ 0.403	0.403	0.13	13	0.77	1.70
HET 2619	26	19/ 0.102	0.504	0.15	12	0.87	2.20
HET 2401	24	1/ 0.510	0.510	0.21	8.5	0.88	2.50
HET 2419	24	19/ 0.127	0.634	0.24	7.5	1.00	3.10
HET 2201	22	1/ 0.644	0.644	0.33	5.3	1.01	3.72
HET 2219	22	19/ 0.160	0.800	0.38	4.7	1.17	4.60
HET 2001	20	1/ 0.812	0.812	0.52	3.3	1.18	5.60
HET 2019	20	19/ 0.203	1.009	0.62	2.9	1.38	7.00
HET 1819	18	19/ 0.254	1.269	0.96	1.9	1.64	10.5
HET 1619	16	19/ 0.300	1.500	1.34	1.3	1.87	14.3

Product Detail

250V HET-SPC Polyimide Taped Wire Silver Plated Copper Lightweight Cable for Communication

FAQ

1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
