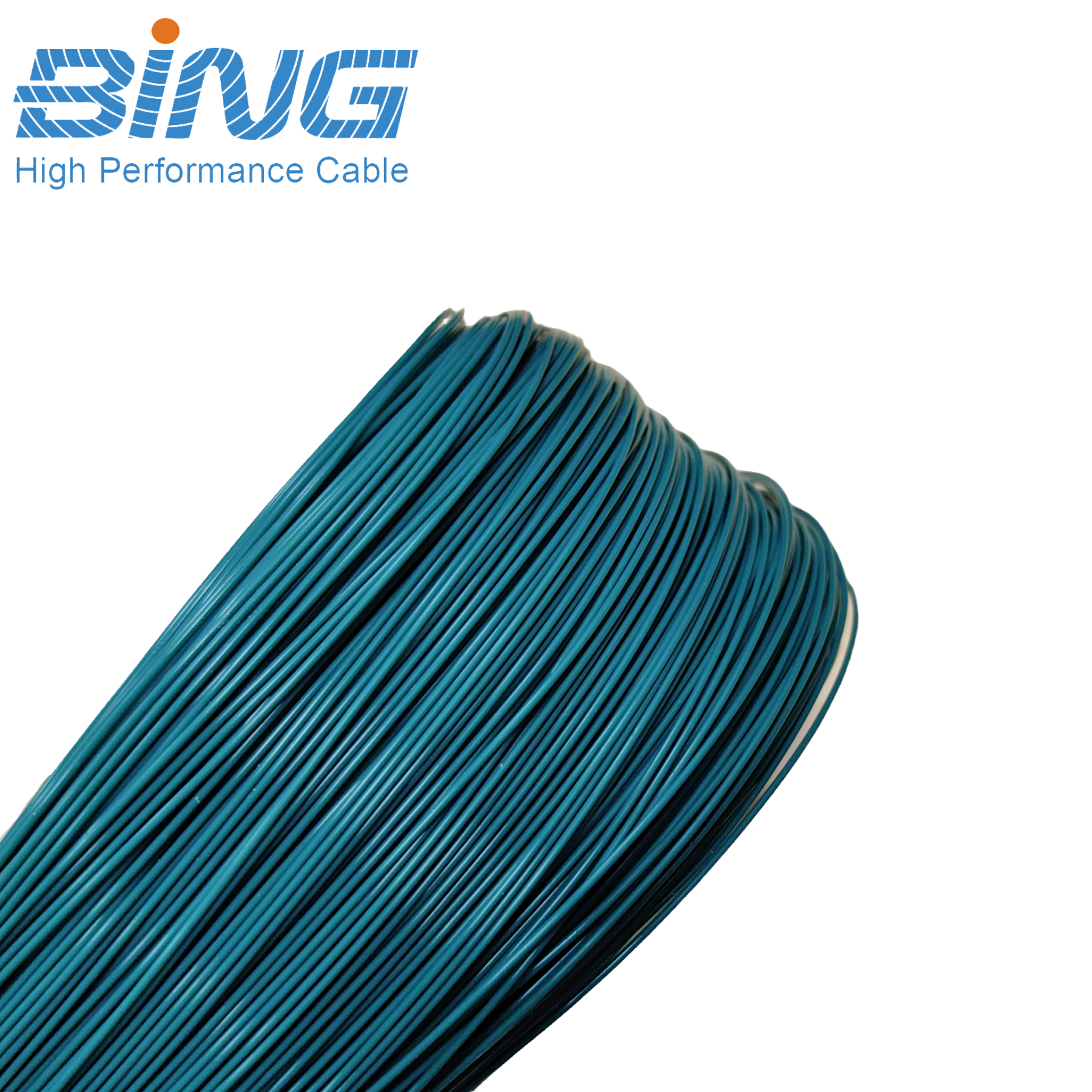

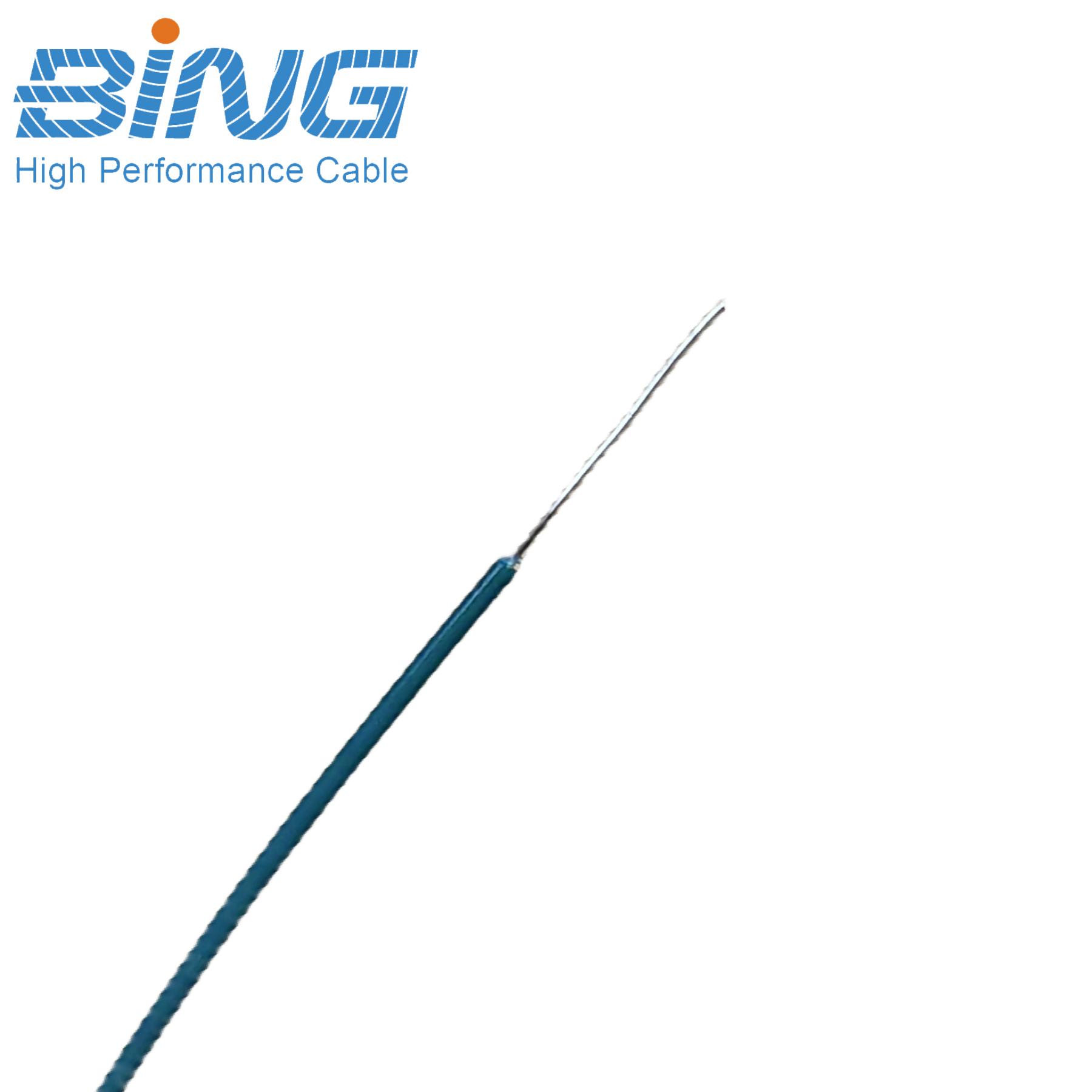

M22759/11 Hookup Wire 600V PTFE Insulation for Auto and Heating Applications

The M22759/11 is a premium quality, heavy-duty aerospace wire that conforms to the SAE AS 22759/11 standard (formerly MIL-W-22759/11). Featuring a silver-plated copper conductor extruded with a PTFE (Polytetrafluoroethylene) insulation layer, this wire is engineered for extreme environments where high temperatures, smoke emission, and flammability are critical concerns.

• Premium Conductor: Silver-plated copper stranded conductor effectively improves corrosion resistance and conductivity, reduces signal loss, and is suitable for long-term use in harsh environments.
• Flexible and Durable: The cable has good flexibility, easy to install and wire in narrow space of aviation equipment, and the insulation layer is wear-resistant and anti-tear.
• High & Low-Temperature Tolerance: Rated for continuous operation from -55°C to +200°C. The PTFE insulation remains stable and effective without compromising its dielectric properties.
• Exceptional Dielectric Strength: PTFE offers a high volume resistivity and low dielectric loss, ensuring excellent insulation and high breakdown voltage unaffected by frequency or environmental changes.
• Flame Resistance & Self-Extinguishing: The insulation is inherently non-flammable. In the event of a fire, it will not propagate flames and self-extinguishes immediately upon removal of the ignition source.
• Superior Chemical Resistance: PTFE is inert to nearly all chemicals and solvents, including concentrated acids, bases, and hydrocarbons.

• Aircraft Wiring: Ideal for engine compartments, avionics bays, and fuselage wiring where high temperatures and vibration are present.
• Spacecraft & Satellites: Suitable for applications requiring outgassing compliance and extreme temperature cycling.
• Mili tary & Defense Electronics: Internal wiring of ground vehicles, communication systems, and weapon systems.
• Industrial Applications: High-temperature industrial equipment, robotics, and down-hole instrumentation where chemical resistance is required.
• High-Reliability Systems: Ideal for systems where current overload or mechanical stress is a factor.

• Customizable Size: Conductor cross-section and cable length can be customized according to customer needs
• Multi-color Option: Red/black/blue/white and other colors, easy to distinguish wiring in equipment
• Export Standard Packaging: Moisture-proof and pressure-proof packaging, suitable for international shipping
• Fast Delivery: Short lead time for small batch and sample orders
